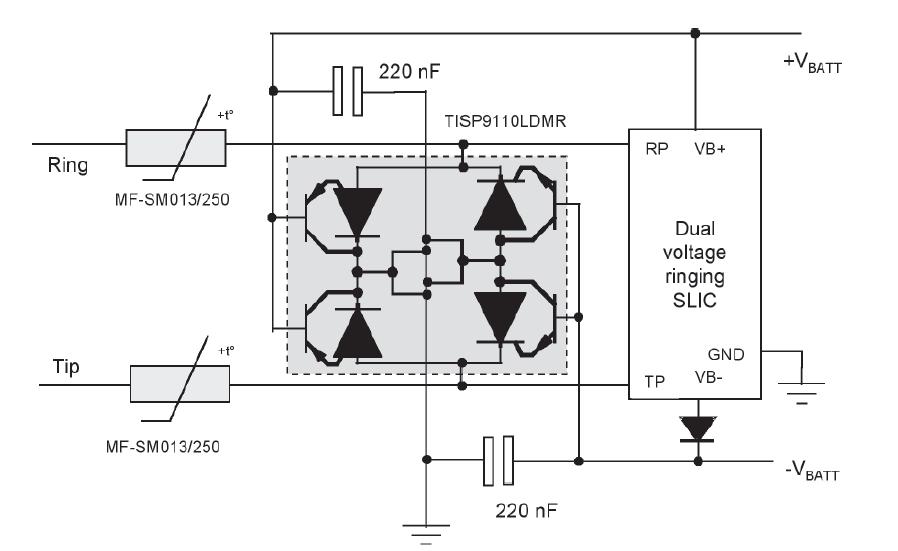

Protecting Legerity Subscriber Line Interface Circuits for Intra-building protection solution

Reference Design using part MF-SM013/250 by Bourns

Enlarge
Image 1 / 1

Manufacturer

  • Application Category
    Circuit Protection
  • Product Type
    Overvoltage Protection
Design with enVision™

For End Products

  • Communications and Telecom

Description

  • GR-1089-CORE intra-building has a 100A 2/10 us test where the equipment must work after the test. The TISP9110LDM has a 2/10 us capability of 100A that helps ensure intra-building impulse requirements are achieved without the need of additional series resistance

Featured Parts (4)

Part Number Manufacturer Type Description
MF-SM013/250V-0 Bourns PTC Resettable Fuses PTC Resettable Fuse 0.13A(hold) 60V 3W 6.5Ohm SMD Solder Pad 6.6 X 3.2 X 7.4mm Bulk Automotive Buy
MF-SM013/250V-2 Bourns PTC Resettable Fuses PTC Resettable Fuse 0.13A(hold) 60V 3W 6.5Ohm SMD Solder Pad 6.6 X 3.2 X 7.4mm T/R Automotive Buy
MF-SM013/250-2 Bourns PTC Resettable Fuses PTC Resettable Fuse 0.13A(hold) 60V 3W 6.5Ohm SMD Solder Pad 6.6 X 3.2 X 7.4mm T/R Automotive Buy
MF-SM013/250V-B5-2 Bourns PTC Resettable Fuses PTC Resettable Fuse 0.13A(hold) 60V 3W 9Ohm SMD Solder Pad 6.6 X 3.2 X 7.4mm T/R Automotive Buy
