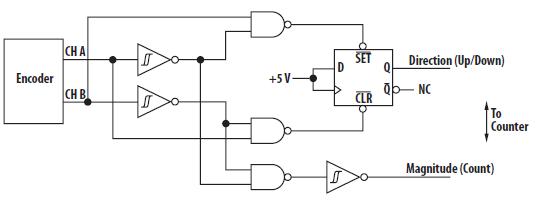

Typical circuit for producing direction (up/down) and magnitude (count) signals using optical encoder

Reference Design using part EM14 by Bourns

Image 1 / 1

Manufacturer

Application Category
Optical
Product Type
Optical Systems

Design with enVision™

For End Products

Audio
Industrial
Measurement Instruments
Portable Medical Instrumentation
Test Equipment

Description

Typical circuit for producing direction (up/down) and magnitude (count) signals, a system¿s counter can be incremented ¿up¿ or ¿down¿ depending on the direction of the encoder¿s shaft rotation.With the capacity to control direction of adjustment as well as magnitude, the incremental encoder can be used in almost any control or position sensing application
